Bulk Cable

Cables



Burglar Alarm Wire / Cable
If you need a cable in specific, contact us to help you

1000ft 22AWG 2 Wire Security Alarm Cable, Solid Copper, Unshielded Solid, UL Listed

Aios prestigious cables are top of the line and manufactured to perform on par with its high quality. The cable features two solid wires. The solid wires provide a mechanical stiffness that is required to maintain the integrity of the signal transfer over long distances, and with a clear signal, you can rest assured that the burglar alarms will sound the instant any illegal attempts are made.

Features

  • 0.64CCA*2+PE1.1MM(Red/Black)+Out Jacket PVC

  • OD.3.2mm

  • AWG 22

  • 2 wires

  • Unshielded

  • Solid

  • Length: 1000 ft

  • UL Listed (CM Rated)






1000ft 22AWG 4 Wire Security Alarm Cable, Solid Copper, Unshielded Solid, UL Listed

Aios prestigious cables are top of the line and manufactured to perform on par with its high quality. The cable features two solid wires. The solid wires provide a mechanical stiffness that is required to maintain the integrity of the signal transfer over long distances, and with a clear signal, you can rest assured that the burglar alarms will sound the instant any illegal attempts are made.

Features

  • 0.64CCA*4+PE1.1MM(Red/Black/White/Yellow)+OUT Jacket PVC

  • OD.3.2mm

  • AWG 22

  • Unshielded

  • 4 wires

  • Solid

  • Length: 1000 ft

  • UL Listed (CM Rated)






1000ft 22AWG 2 Wire Security Alarm Cable, CCA, Unshielded Solid

Aios prestigious cables are top of the line and manufactured to perform on par with its high quality. The cable features two solid wires. The solid wires provide a mechanical stiffness that is required to maintain the integrity of the signal transfer over long distances, and with a clear signal, you can rest assured that the burglar alarms will sound the instant any illegal attempts are made.

Features

  • 0.64CCA*2+PE1.1MM(RED/BLACK)+OUT Jacket PVC

  • OD.3.2mm

  • 22 AWG

  • 2 wires

  • Unshielded

  • Solid

  • Length: 1000ft






Cat5e and RG6 Cable

If you need a cable in specific, contact us to help you

Bulk 2*CAT5e 4 pair + 2* RG6 quad shield, white, 500ft

Category 5e (Cat-5e) is an enhanced version of Cat-5 with greater resistance against cross-talk and with higher performance characteristics. RG-6 is a popular coaxial cable standard used in many home and commercial applications, such as for cable television (CATV) connections. These combo cables combine Cat-5e and RG-6 cables into a single cable, saving you space, time, and money. Furthermore, these particular cables are quad-shielded to provide extra protection against undesirable and signal-damaging electromagnetic intereference. Using these cables, you can enjoy high-speed and high-fidelity data transfer capabilities that only superior cables can deliver.

Features

  • 18 AWG

  • Center Diameter: 1.024 mm

  • Conductor Material: CCS

  • Diameter over Dielectric: 4.5 mm

  • Shielded and Braid: QUAD, 64*0.12+48*0.12, 95% AL

  • Over Jacket: 7.5 mm PVC

  • 2 CAT-5E, 2 RG6U

  • UL listed

  • HK-2C5E-2RG6U : 500 ft






Cat5e Bulk Cable

If you need a cable in specific, contact us to help you




Bulk 2*CAT5e 4 pair + 2* RG6 quad shield, white, 500ft

Cat5e weather resistant networking bulk cable is durable for outdoor use, this cable is Gel-Filled and allows you to put into the ground for Direct Burial use. Using these cables, you can enjoy high-speed and high-fidelity data transfer capabilities that only superior cables can deliver.

Note: The cable is water resistant but shouldn't sit in water for an extended period of time.


Features

  • Cable Color: Black

  • UV Resistant CMXF

  • Ratings/Listings: ETL CM FT4

  • Length: 1000 feet

  • Direct Burial Cable

  • 1000BASE-T Gigabit ethernet

  • 10BASE-T, 100BASE-T fast ethernet (IEEE 802.3)

  • 100 VG- AnyLAN(IEEE802.12), 155/622 Mbps ATM

  • 550MHz broadband video

  • Voice, T1, ISDN

  • Suitable for aerial installation, Cat5 system and for subscriber networks

  • Bare Copper

  • 24 AWG

  • UL listed






1000ft Bare Copper 24AWG CMR UTP Cat5e Bulk Cable, 350MHz, Solid Wire - Blue

Cat5e bulk cables are perfect for running wires in commercial or residential buildings. Our bulk cables use pure bare copper conductors with 24AWG wires and are 100% tested for performance and conformance to UL standards.

Features

  • Cat5e bulk cable

  • 350MHz

  • Solid wire

  • Blue wire color

  • 1000 feet

  • 24AWG

  • CMR rated

  • Bare copper

  • UL listed






1000ft Bare Copper Cat5e Bulk Cable, 350MHz, Stranded Wire - Blue

Category 5e (Cat5e) is an enhanced version of Cat5 with greater resistance against cross-talk and with higher performance characteristics. These particular cables have stranded wires for extra flexibility, providing greater ease of bending. Using these cables, you can enjoy high-speed and high-fidelity data transfer capabilities that only superior cables can deliver.

Features

  • 4-pair unshielded twisted pair (UTP)

  • 350MHz speed, guaranteed

  • PVC Jacket built to last

  • Comes in an EZ pull box

  • Indoor rated, best used in walls, conduits, and ceilings

  • UL/CSA, EIA/TIA, ETL compliant






Cat6a Bulk Cable

If you need a cable in specific, contact us to help you

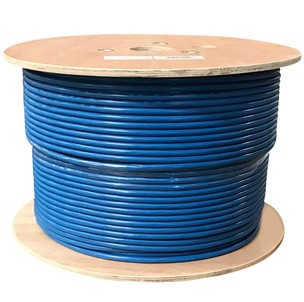

1000ft Bulk UTP Cat6a Cable, Solid Wire, 23AWG - Blue

Cat6a solid wire bulk cables provide the solution with support for 10GBASE-T networks. Solid wire cables feature a single strand (metal wire) that's typically used for long distance runs (up to 100 meters). These Cat6a bulk cables feature a CM rated PVC jacket, pure bare copper wires, and exceed ANSI/TIA-568-C.2 standards. All of our Cat6a bulk cables are also UL listed, CSA approved and ETL verified.

Features

  • Category 6a (Augmented) Unshielded Twisted Pair (UTP) cable

  • Useful for applications up to 10Gbps

  • 23AWG solid bare copper conductors

  • 4 pairs of striped colored pairs

  • CM rated

  • Minimizes alien crosstalk when compared to Cat6

  • Comes in a 1000ft spool

  • Exceeds ANSI TIA/EIA 568 C.2 standards

  • UL listed, CSA approved and ETL verified

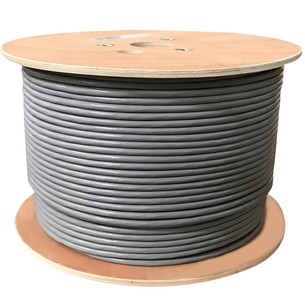

1000ft Bulk UTP Cat6a Cable, Solid Wire, 23AWG - Gray

Cat6a solid wire bulk cables provide the solution with support for 10GBASE-T networks. Solid wire cables feature a single strand (metal wire) that's typically used for long distance runs (up to 100 meters). These Cat6a bulk cables feature a CM rated PVC jacket, pure bare copper wires, and exceed ANSI/TIA-568-C.2 standards. All of our Cat6a bulk cables are also UL listed, CSA approved and ETL verified.

Features

  • Category 6a (Augmented) Unshielded Twisted Pair (UTP) cable

  • Useful for applications up to 10Gbps

  • 23AWG solid bare copper conductors

  • 4 pairs of striped colored pairs

  • CM rated

  • Minimizes alien crosstalk when compared to Cat6

  • Comes in a 1000ft spool

  • Exceeds ANSI TIA/EIA 568 C.2 standards

  • UL listed, CSA approved and ETL verified






1000ft Bulk S/STP Cat6a Cable, Solid Wire, 23AWG - Gray

Cat6a cabling is designed for 10-Gigabit applications. Although Cat6 cables are able to achieve 10-Gigabit speeds, the length is limited to a maximum of 50 meters or 164 feet. Cat6a cables are able to reach distances up to 100 meters or 328 feet, while significantly improving on alien crosstalk.

Features

  • Category 6a (Augmented) Screen Shielded Twisted Pair (S/STP) or Screen Foil Twisted Pair (S/FTP) cable

  • Metal foil shield around each individual pair with an overall screen around all pairs for protection against EMI/RFI interference

  • Useful for applications up to 10Gbps

  • 23AWG solid bare copper conductors

  • 4 pairs of striped colored pairs

  • CM rated

  • Minimizes alien crosstalk when compared to Cat6

  • Comes in a 1000ft spool

  • Exceeds ANSI TIA/EIA 568 C.2 standards

  • UL listed, CSA approved and ETL verified






DMX Lighting Cables

If you need a cable in specific, contact us to help you

500ft One Pair DMX Digital Lighting Control Cable, 6mm OD, Braid Shield



DMX (Digital Multiplex) are most well known for their use in stage lighting and effects. DMX lighting cables can be used for a lighting console, a dimmer, a fog machine and almost any type of lighting or controlled unit.

Features

  • AWG: 24

  • Impedance: 110 Ohm

  • Number of Conductor: 2C

  • Conductor Material: Bare Copper

  • Conductor Construction: 20/0.12 ± 0.008mm

  • Conductor Stranded Diameter: 0.62mm

  • Insulation Material: HDPE

  • Insulation Nom. Thickness: 0.59mm (ref.)

  • Insulation Diameter: 1.8mm ± 0.05

  • Insulation Color: Red / White

  • Filler Material: Cotton Rope

  • Tape Material: Aluminum Mylar

  • Tape Over Lapping: 25%

  • Drain Wire Material: Tinned Copper

  • Drain Wire Construction: 7/0.20 ± 0.008mm

  • Braid Material: Tinned Copper

  • Braid Coverage: 16%/9/0.10 ± 0.008mm

  • Jacket Material: 95P PVC

  • Jacket Min. Thickness: 0.8mm

  • Jacket Nom Thickness: 1.0mm (ref.)

  • Jacket O.D. 6.0mm ± 0.15mm

  • Jacket Color: Blue

  • 500 FT/Spool

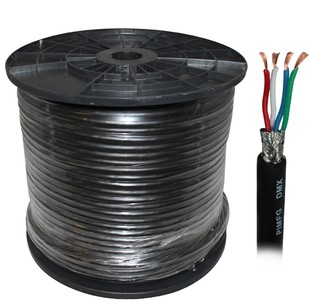

500ft Two Pair DMX Digital Lighting Control Cable, OD:8mm, Braid Shield



DMX (Digital Multiplex) are most well known for their use in stage lighting and effects. DMX lighting cables can be used for a lighting console, a dimmer, a fog machine and almost any type of lighting or controlled unit.

Features

  • AWG: 24 / 24

  • Impedance: 110 Ohm

  • Number of Conductor: 2C / 2C

  • Conductor Material: Tinned Copper / Tinned Copper

  • Conductor Construction: 20/0.120.008mm / 20/0.120.008mm

  • Conductor Stranded Diameter: 0.62mm / 0.62mm

  • Insulation Material: HDPE / HDPE

  • Insulation Nom. Thickness: 0.27mm (ref.) / 0.27mm (ref.)

  • Insulation Diameter: 1.65mm0.05 / 1.65mm0.05

  • Insulation Color: Red and White / Green and Black

  • Filler Material: Cotton Rope

  • Tape Material: Aluminum Mylar

  • Tape Over Lapping: 25

  • Drain Wire Material: Tinned Copper

  • Drain Wire Construction: 7/0.200.008mm

  • Braid Material: Tinned Copper

  • Braid Coverage: 16%/9/0.100.008mm

  • Jacket Material: 95P PVC

  • Jacket Min. Thickness: 0.4mm

  • Jacket Nom Thickness: 0.5mm (ref.)

  • Jacket O.D. 7.5mm0.15mm

  • Jacket Color: Black

  • 500 FT/Spool






Fiber Optic Bulk Cable

If you need a cable in specific, contact us to help you

Indoor Fiber Drop Cable, Simplex, 9/125 Singlemode - 305 Meter



**Connectors sold separately**

Features

  • 9/125 Singlemode

  • Simplex

  • White recommended for indoor use

  • 1000ft (305m)






Flat Ribbon Bulk Cable

If you need a cable in specific, contact us to help you

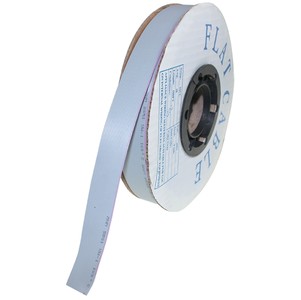

PC Flat Ribbon Cable: 28AWG, 20 Wire, 100ft/roll


Ribbon cables are commonly used for internal connections between computer components and computer motherboards, such as connecting hard disk, optical, and floppy drives. Ribbon cables are basic essentials for computer systems used in the past.

These cables are passive and should be used for data transferring purposes only.

Typical Applications:

  • Connecting between internal computer peripherals and computer motherboard.

  • Making smaller ribbon cables.

Conductor

  • 28 AWG

Insulation

  • Material of insulation: Polyvinl chloride (PVC) Gray Insulation thickness average: 9mil

  • Minimum insulation thickness: 7mil

Wires

  • 20

Spool

  • 100ft/roll

  • Round

UL Style

  • 2651






PC Flat Ribbon Cable: 28AWG, 50 Wire, 100ft/roll


Ribbon cables are commonly used for internal connections between computer components and computer motherboards, such as connecting hard disk, optical, and floppy drives. Ribbon cables are basic essentials for computer systems used in the past.

These cables are passive and should be used for data transferring purposes only.

Typical Applications:

  • Connecting between internal computer peripherals and computer motherboard.

  • Making smaller ribbon cables.

Conductor

  • 28 AWG

Insulation

  • Material of insulation: Polyvinl chloride (PVC) Gray Insulation thickness average: 9mil

  • Minimum insulation thickness: 7mil

Wires

  • 50

Power

  • Current: 200mA

UL Style

  • 2651






Microphone Bulk Cable

If you need a cable in specific, contact us to help you

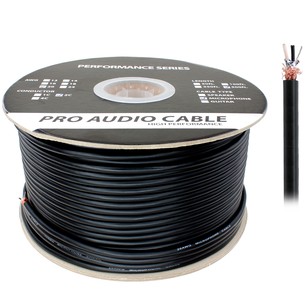

500ft 16AWG Unbalanced Guitar Cable, Braid Shield, OD: 7mm


Microphone cables primarily connect between microphones and audio/video devices. These cables are essential for any home theater or A/V system. Using these cables, you can experience high-quality audio that only superior cables can deliver.

Features

  • AWG: 16

  • Impedance: 75Ω (Ohm)

  • Number of Conductor: 1C

  • Conductor Material: Bare Copper

  • Conductor Construction: 20/0.120.008mm

  • Conductor Stranded Diameter: 0.62mm

  • Insulation Material: LDPE

  • Insulation Nom. Thickness: 1.0mm (ref.)

  • Insulation Diameter: 1.4mm0.1

  • Insulation Color: Red

  • Spirally Material: Bare Copper

  • Spirally Construction: 36/0.120.008mm

  • Jacket Material: 95P PVC

  • Jacket Min. Thickness: 0.56mm

  • Jacket Nom Thickness: 0.7mm (ref.)

  • Jacket O.D. 7.0mm

  • Jacket Color: Black

  • 500 FT/Spool






500ft One Pair Balanced Microphone Cable OD:8mm Twist Pair, Braid Shield, AWG-20


Microphone cables primarily connect between microphones and audio/video devices. These cables are essential for any home theater or A/V system. Furthermore, these particular cables are balanced for extra protection against undesirable and signal-damaging electromagnetic interference. Using these cables, you can experience high-quality audio that only superior cables can deliver.

Features

  • AWG: 20

  • Impedance: 75Ω (Ohm)

  • Number of Conductor: 2C

  • Conductor Material: Bare Copper

  • Conductor Construction: 20/0.120.008mm

  • Conductor Stranded Diameter: 0.62mm

  • Insulation Material: HDPE

  • Insulation Nom. Thickness: 0.27mm (ref.)

  • Insulation Diameter: 1.5mm0.05

  • Insulation Color: Red / White

  • Filler Material: Cotton Rope

  • Spirally Material: Bare Copper

  • Spirally Coverage: 60%2/0.120.008mm

  • Jacket Material: 95P PVC

  • Jacket Min. Thickness: 0.4mm

  • Jacket Nom Thickness: 0.5mm (ref.)

  • Jacket O.D. 8.0mm

  • Jacket Color: Black

  • 500 FT/Spool






Phone Cable Bulk Wire

If you need a cable in specific, contact us to help you

100ft Round Bulk Cable, 25 Wire, 28AWG


Computer cables provide connectivity for internal devices within a computer. Whether it is connecting between drives, cards, boards, and/or case ports, computer cables are basic essentials for any computer system. Using these cables, you can enjoy high-fidelity and high-speed data transfer rates that only superior cables can deliver.

Typical Applications:

  • Connecting between internal computer devices and components.

  • Connecting between computer drives, cards, boards, and/or case ports.

  • Making smaller computer cables.






1000ft 4-Conductor Bulk Phone Cable, 26AWG, Silver Satin, UL Rated


Aios four conductor cable is great for low data rate applications. This cable consists of four 26 AWG conductors.

Features

  • 4 conductors

  • UL 26 AWG, flat

  • 1000ft/roll

  • Grey color






RG58 Bulk Cable

If you need a cable in specific, contact us to help you

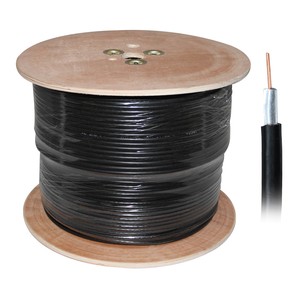

1000ft RG58U Bulk Cable


RG-58 is a coaxial cable standard used for many low-power signal and RF connections. These particular cables have aluminum foil shielding to provide protection against undesirable and signal-damaging electromagnetic interferences. Using these cables, you can enjoy high-speed and high-fidelity data transfer capabilities that only superior cables can deliver. Using these cables, you can enjoy high-speed and high-fidelity data transfer capabilities that only superior cables can deliver.

Typical Applications:

  • Low-power signal and RF connections.

  • Making smaller RG-58u cables.

  • RG58-U : Coaxial cable RG58U, 0.8mm bare copper, 1000ft, black






RG6 Bulk Cable

If you need a cable in specific, contact us to help you

1000ft RG6 Dual Shielded + Power Siamese Cable - Black (18AWG Bare Copper + 18AWG Copper)


These professional grade RG6 cables are of the highest quality and shielding. With dual layer shielding, the signal transmitted is unaltered and crystal clear. In addition to the RG6 cable, there is also a 18 gauge power cord that allows you to conveniently power your A/V devices as well. The easy to install cable allows you to fit the cable with any type of connector you need: F-Pin ends (for Cable TV), BNC ends (professional video applications), or RCA connectors.

Features

  • RG6 Dual Shield + Power Siamese Cable

  • 1000 feet spool

  • Designed for audio / video, CCTV applications, and more

  • Coupled with 18AWG power cables

  • Bare copper conductor






Speaker Wire

If you need a cable in specific, contact us to help you

500ft 14AWG 2 Wire Enhanced Loud Oxygen-Free Speaker Wire Cable


Features

  • 2-Conductor wire

  • Oxygen-free copper material for enhanced conductivity and wide frequency support, while providing cost-effectiveness

  • 14AWG thicker wires to reduce resistance

  • Designed for audio enthusiasts to reproduce high fidelity (hi-fi) output

  • Length: 500 feet

  • Bare Copper






Wireless Antenna Bulk Cable

If you need a cable in specific, contact us to help you

RG316u Bulk Cable, 1000ft

RG-316 is a coaxial cable standard used with LEMO 00 connectors in NIM electronics, which are electronic modules used in experimental particle and nuclear physics. Using these cables, you can enjoy high-performance electrical transfer capabilities that only superior cables can deliver.

Typical Applications:

  • NIM electronics.

  • Experimental particle and nuclear physics.

  • Making smaller RG-316u cables.





SEARCH
Back to content | Back to main menu
