Audio Video Extenders

Home Theater

VGA Extenders

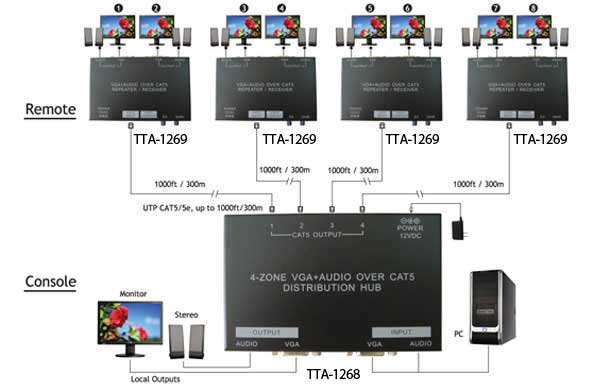

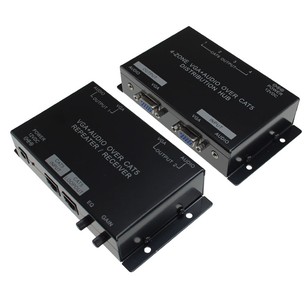

4 Zone VGA and 3.5mm Stereo Audio Cat5 Distribution System
	4 Zone VGA and 3.5mm Stereo Audio over Cat5 kit allows you to extend your signal to get to the places you need. This allows you to take one source and extend the signal into 4 different rooms 1000 ft away per Cat5 cable (See diagram below). In each room, you will be able to view your signal on two displays and listen to your audio on two sets of speakers. For setup you would plug in your source for display and audio source (ex: computer) into the transmitter. The transmitter will give you a single output for display and audio for local use. The other end of the transmitter has 4 slots for CAT5 outputs and a power plug. With 4 CAT 5 cables you can extend each cable up to 1000ft where then you would connect it to a repeater, which has two outputs, to display up to two monitors and 2 sets of speakers.
	Features VGA and 3.5mm Stereo Audio over Cat5 networking cable Four zone distribution ability & loop out function Supports up to 1024 x 768 px (XGA) resolutions Sends VGA and 3.5mm Stereo Audio one Cat5 cable per zone (up to 4) Distance: up to 590 feet (180M) Power Adapter: DC 12V 1.2A Transmitter: TTA-1268 Repeater: Supports up to 4 x TTA-1269 Includes one Repeater/Receiver, one Distribution Hub and two power adapters

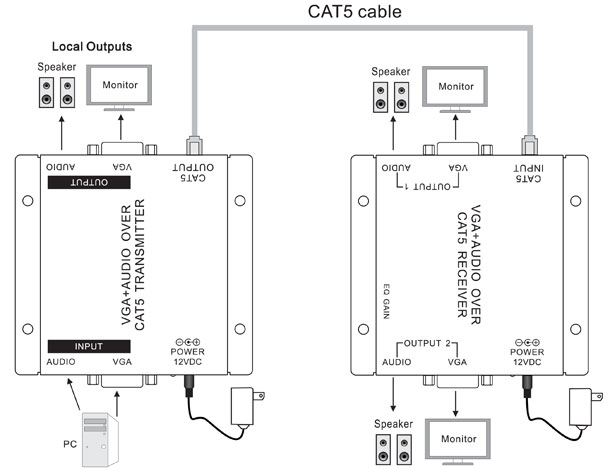

	Example Diagram Loopout Diagram

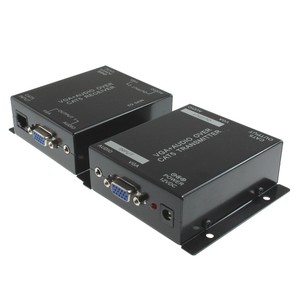

VGA and 3.5mm Audio Over One Cat5 Cable Extender (up to 540ft)
	Aios VGA with Audio Extender over Cat5e allows you extend your signal up to 540ft when used at 1024 x 768px resolution. These extenders provide a solution to achieve greater reach that you were looking for. By running the VGA cables into extenders, the data is signaled out fully through a Cat5 cable, allowing for the existence of a network that is not bound by any distance. Extending your signals using Cat5e cables saves you money and is easier to run through walls. These extenders can be used in homes, offices, restaurants, bars, and any locations that desire to run a video/audio signal over a long distance. (RJ45 jack plug in on the backside)
	Features Transmission distance up to 540ft when used with receiver (1024 x 768px) VGA with 3.5mm Audio Video and Audio signal transmits over a single Cat5e UTP cable (Cat5/Cat5e) 12VDC switching power supply (Included) Distance Chart: -640 x 480px (VGA) 1000ft -800 x 600px (SVGA) 660ft -1024 x 768px (XGA) 540ft -1280 x 1024px (SXGA) 400ft -1600 x 1200px (UXGA) 330ft
	Example Diagram

Wireless Extenders

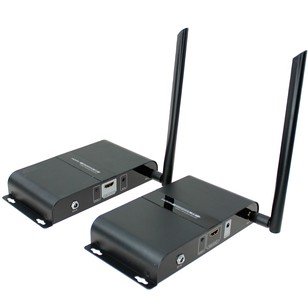

HDbitT Wireless HDMI Extender (Up to 656ft One-to-One up to 4K, Split to More Monitors)
	Wirelessly extend HDMI signals up to 656 feet. The wireless HDMI extender supports resolutions up to 1080p 60Hz or 4K at 30Hz. Additionally, 3 receivers can also be used on the same connection, allowing it to act as a splitter. The units are wall mountable, allowing easy installation in residential or commercial applications. Please Note: Only the IR emitters that come with the product are compatible. IR emitters that are not purchased with this kit will not work
	Features Extends HDMI signal wirelessly 1080p @ 60Hz (4K @ 30Hz) up to 656ft away Can use up to 3 receivers on the same connection Wall mountable for convenient installation Supports IR remote control functions 5VDC power adapters included Resolution -480i/480p -720p -1080i -1080p Includes sender unit, receiver, 2 x AC adapters, 2 x IR cables Compliant to HDCP Supports all HDMI features including full HD 1080p deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTs Master Audio Power Consumption: TX: 8.5W, RX: 5.5W Easy installation, plug-and-play

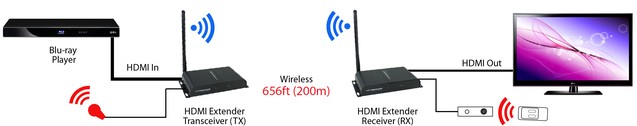

	Diagram 1: General Connection

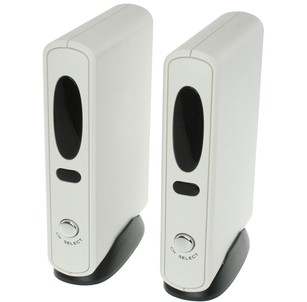

2.4 GHz Wireless Audio and Video Sender
	Use this Transmitter and Receiver to watch your favorite programs or videos in other locations without the hassle of having to move your playing device around. Simply connect the transmitter to the composite output of your device (DVD, VHS, Computer, Camera, etc.) Then connect the receiver to the composite input of the device (TV, or video display, etc) where you want to display and play your videos, movies etc. Play your movies from the transmitter device and watch them on the receiver device. Also a very convenient feature from the AV-2500 is the Infrared feature allows you to use a remote control or handset to operate presentation of the transmitter, from the receiver.
	Features Wireless RCA audio and video transmission for AV machine Transmit RCA video to TV Can be used for security cameras One 2.4GHz wireless transmitter and one receiver Up to 4 pairs can be active at once. Also supports one transceiver to multiple receivers Range up to 200ft Digital image filter to enhance picture quality Built-in antenna Uses FM modulation technology Compact size Tx Power: 0dbM(FCC); 10dBm(CE) Channel Number: 4 (2.400 to 2.483GHz) Transmitter video input: RCA composite video Receiver video output: RCA composite video Transmitter audio input: RCA L/R stereo Receiver audio output: RCA L/R stereo
	Diagram 1: General Connection

SDI Extenders

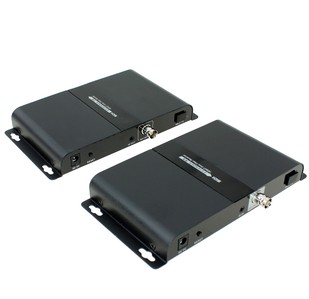

HDbitT SDI Extender Over Fiber Cable with Built-in IR (Up to 65,617ft at up to 4K)
	For long runs, nothing beats the performance of running fiber optic cables. Typically, extending your SDI cameras, audio, or any other SDI device uses Cat5e or Cat6 cables. HDbitT enables high-definition Audio/Video up to 4K resolution transmitted via network cables, optic fiber, power line cable, wireless and even more transmission medium, it provides more stable performance, better image clarity, further transmission distance and other significant advantages, easily to facilitate the requirement of HD signals long-distance transmission without any converter. This SDI extender from PI Manufacturing allows you to run your SDI signal up to 65,617 feet in length at up to 1080p via fiber optic cables. 2 IR cables are also included to control your SDI devices, even when they are not in direct line of sight of your television. Designed for arenas, studios, or events that require a longer run for your SDI devices.
	Features Extends SDI and IR over a Single Mode SC fiber cable Up to 4K at up to 65,617ft Resolution -480i/480p -720p -1080i -1080p Includes sender unit, receiver, 2 x AC adapters, 2 x IR cables Compatible with Single Mode Simplex SC fiber cables, 1310nm Avoids electromagnetic interferences for long distance transmission Low signal loss and wide frequency band Power Consumption: 10W (TX; RX) Power supply: 5V 2A
	Product Diagram

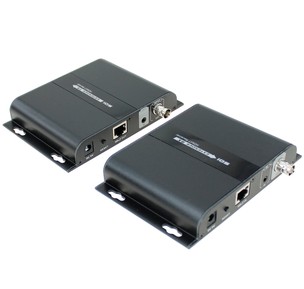

HDbitT SDI Extender Over Cat5 / Cat6 Cable with Built-in IR (Up to 394ft up to 4K)
	Please Note: Only the IR emitters that come with the product are compatible. IR emitters that are not purchased with this kit will not work
	Features Extends HDbitT SDI Signal and IR over a single Cat5/6 cable Up to 4K resolution at 328ft using Cat5e, 394ft using Cat6 Can use multiple receivers when sender and receivers are on same router Wall mountable for convenient installation 5VDC power adapters included Resolution -SD-SDI signal: 480i, 576i -HD-SDI signal: 720p, 1080i, 1080p @ 30Hz -3D-SDI signal: 1080p @ 60Hz (4K @ 30Hz) Includes sender unit, receiver, 2 x AC adapters, 2 x IR cables Power Consumption: 6W (max) each Ethernet bandwidth: 100Mbps Supports LAN transmission to build network flexibility Aluminum alloy enclosure - black
	Diagram 1: General Connection Diagram 2: Split Connection Diagram 3: Daisy Chain Connection

HDbitT SDI Extender Over Cat5 / Cat6 Cable with Built-in IR (Receiver Only)
	This product is for one receiver to go with SDI-HDBT-120IR. Using multiple receivers allows you to display your source on multiple monitors and extend your length an extra 100m-120m.
	Features HDbitT SDI receiver to split out SDI signal to multiple LCDs 1080p at up to 120m using Cat6 networking cable Split signal over multiple receivers when sender and receivers are on same router 5VDC power adapters included Resolution -480i/480p -720p -1080i -1080p Includes 1 x receiver, 1 x AC adapter, and 1 x IR Emitter Supports LAN transmission to build network flexibility Aluminum alloy enclosure - black Power Consumption: 6W (max) each Ethernet bandwidth: 100Mbps NOTE: This product is only compatible with SDI-HDBT-120IR

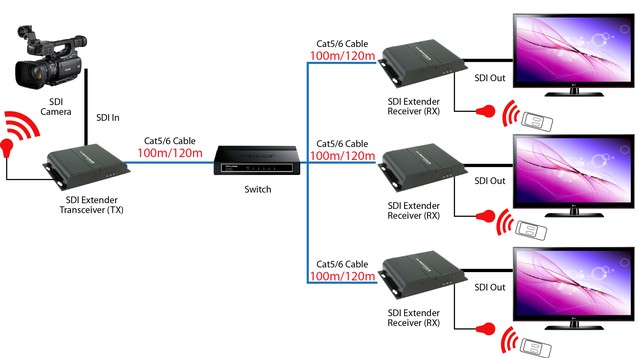

	Product Diagram: Split Connection

HDMI Extenders

HDMI Extender Over Cat6 Cable with Built-in IR (Up to 120ft at 1080p with PoE Power)

	Features Extends HDMI, IR and Power over a single Cat6 cable 1080p at up to 120ft using a Cat6 23AWG cable Supports up to Full HD 1080p @ 60Hz Uncompressed and zero latency Supports all HDMI features including full HD 1080p deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTS Master Audio Supports IR Only one power adapter needed, supports PoE to power TX to RX Resolution: 480i/480p, 576i/576p, 720p, 1080i/1080p HDCP compliant Control devices via IR signal

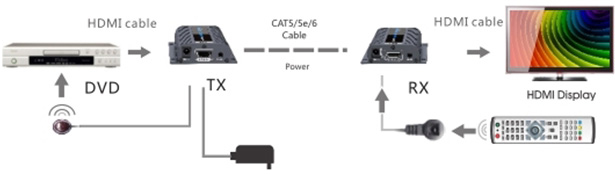

	Example Diagram

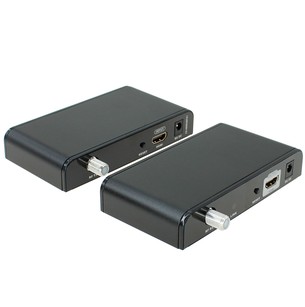

HDMI Extender Over Coaxial Cable (Up to 2297ft at 1080p)
	The HDMI-RG-700M is a comprehensive solution, allowing HDMI extensions over coax using QAM to provide video quality up to 1080p with support for distances up to 2297 feet. The device allows a one to one connection, split connection to multiple or more monitors with the addition of multiple or more receivers, or having both the source and display with transmitters and receivers on both sides that are independent from each other. The device supports up to 100 channels (0-99 channels).
	Features Extends HDMI over a single coaxial cable Transmits HDMI using RG6 coaxial cable Can use multiple receivers when used with a coaxial splitter 5VDC power adapters included Resolution -480i/480p -576i/576p -720p -1080i -1080p / 60Hz H.264 video encoding Includes sender unit, receiver, 2 x AC adapters HDCP compliant Supports all HDMI features including full HD 1080p deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTs Master Audio Power Consumption: 3.5W (TX), 3W (RX) max Additional receivers sold separately HDMI-RG-700M-RX Important Usage Notes

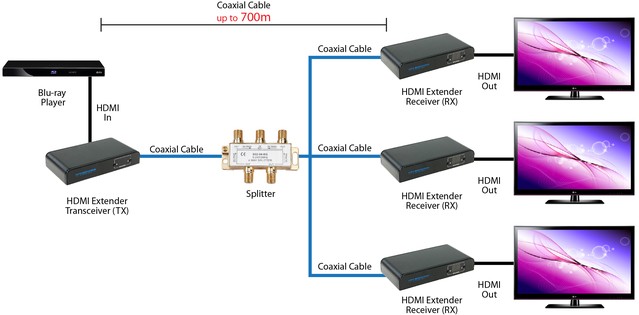

	Diagram 1: General Connection Diagram 2: Split Connection Diagram 3: Multiple Connection

HDMI Extender Over Coaxial Cable (Receiver Only)

	Features HDMI receiver to split out HDMI signal to multiple LCDs 1080p at up to 2100ft using RG6 coaxial cable Can use multiple receivers when used with a coaxial splitter 5VDC power adapters included Resolution -480i/480p -576i/576p -720p -1080i -1080p Supports up to 1920x x1080 @ 60Hz HDMI graphics H.264 video encoding Includes receiver and AC adapter Compliant to HDCP Supports all HDMI features including full HD 1080p deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTs Master Audio Power Consumption: 3W (RX) max HDMI Extender HDMI-RG-700M (Sold separately)
	Product Diagram: Split Connection

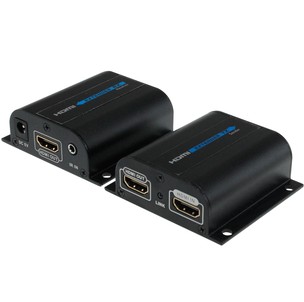

HDMI Extender Over Cat6 Cable with Built-in IR (Up to 164ft at 1080p)
	Limited by the distance of HDMI cables and need a cost-effective way to extend the length of your HDMI cable? Aios HDMI extender extends HDMI signals up to 164 feet using Cat6 cables with support up to 1080p and IR control. Constructed with a durable aluminum design with wall mountable cut outs for easy installation in any application, the HDMI extender features Full HD support and support for uncompressed audio outputs (LPCM, Dolby TrueHD, DTS Master Audio). IR control also allows you to easily control your source devices, such as Blu-ray players, television receivers, and other HDMI enabled devices.
	Features Extends HDMI and IR over a single Cat6 cable 1080p at up to 164ft using Cat6 23AWG cable Supports all HDMI features including full HD 1080p deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTS Master Audio 2 x 5V DC power adapters included Resolution: 480i/480p, 576i/576p, 720p, 1080i/1080p HDCP compliant Control devices via IR signal Easy to use Plug and Play, no drivers needed Aluminum housing for durability Includes sender unit, receiver, 2 x AC adapters, 1 x TX IR cable, 1 x RX IR cable Power Consumption: 2W (max) each
	Example Diagram

HDMI Extender Over Cat6 Cable with Built-in IR (Up to 197ft at 1080p) and HDMI Loop Back Function
	Limited by the distance of HDMI cables and need a cost-effective way to extend the length of your HDMI cable? HDMI extender extends HDMI signals up to 197 feet using Cat6 cables with support up to 1080p and IR control. In addition to extending the HDMI signal, this model has a loop back function on the sender end to connect a local HDMI display. Constructed with a durable aluminum design with wall mountable cut outs for easy installation in any application, the HDMI extender features Full HD support and support for uncompressed audio outputs (LPCM, Dolby TrueHD, DTS Master Audio). IR control also allows you to easily control your source devices, such as Blu-ray players, television receivers, and other HDMI enabled devices.
	Features Extends HDMI and IR over a single Cat6 cable 1080p at up to 164ft using Cat6 23AWG cable Loop back function to include a HDMI display on sender side Supports all HDMI features including full HD 1080p deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTS Master Audio 2 x 5V DC power adapters included Resolution: 480i/480p, 576i/576p, 720p, 1080i/1080p HDCP compliant Control devices via IR signal Easy to use Plug and Play, no drivers needed Aluminum housing for durability Includes sender unit, receiver, 2 x AC adapters, 1 x TX IR cable, 1 x RX IR cable Power Consumption: 2W (max) each
	Example Diagram

HDMI Extender Over Ethernet Cable with Built-in IR (Up to 394ft One-to-One at 4K, Split to More Monitors, Daisy Chain for Longer Distances)
	Extend HDMI lengths up to 394 feet with the HDMI extender over Ethernet cable. The extender uses standard Ethernet cables (Cat5e / Cat6) to extend the distance limitations of HDMI. The extender includes extra features, allowing you to extend one-to-one, split to more HD displays, and daisy chain to extend even longer lengths. With support for resolutions up to 4K / 30Hz Ultra HD, experience and redefine your viewing experience in crystal clear Ultra HD quality.
	Features Extend HDMI up to 394 feet using Ethernet cable Built-in IR for controlling devices remotely Supports resolutions up to 4K Ultra HD 30Hz One-to-one, split, or daisy chain configuration Wall mountable design for placement in different applications Metallic housing for durability 5V 2A power

HDMI Extender Over Ethernet Cable with Built-in IR (Up to 394ft One-to-One at 4K, Split to More Monitors, Daisy Chain for Longer Distances)
	This product is the separate receiver for the HDMI-2K4K-120IR, allowing you to extend HDMI distances up to 394 feet over Ethernet cables with support for resolutions up to 4K UHD.
	Features Extend HDMI up to 394 feet using Ethernet cable Built-in IR for controlling devices remotely Supports resolutions up to 4K Ultra HD 30Hz One-to-one, split, or daisy chain configuration Wall mountable design for placement in different applications Metallic housing for durability 5V 2A power

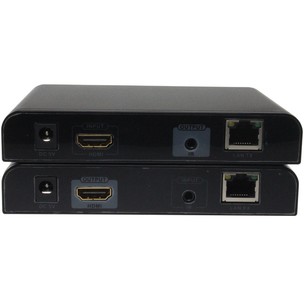

HDMI Extender Over Cat5 / Cat6 Cable with Built-in IR (Up to 394ft at 1080p)
	The HDMI-CAT6-120IR from extends your HDMI connection up to 328 feet using a single Cat5e cable or 394 feet using a single Cat6 cable. Extending your HDMI cable using Cat5e / Cat6 cables saves you money and is easier to run through walls and other compact areas. The HDMI extender includes 2 IR cables, which allows you to control your Blu-ray, DVD player, or any other HDMI enabled device into another area of the room, such as a cabinet and have the ability to control it without pointing at the cabinet. These extenders can be used in homes, offices, restaurants, bars, and any location that you need to run an audio/video signal over longer distances.
	Features Extends HDMI and IR over a single Cat5/6 cable 1080p at up to 328ft using Cat5e, 394ft using Cat6 Can use multiple receivers when sender and receivers are on same router 5VDC power adapters included Resolution -480i/480p -720p -1080i -1080p Includes sender unit, receiver, 2x AC adapters, 2 x IR cables Compliant to HDCP Supports all HDMI features including full HD 1080p deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTs Master Audio Power Consumption: 3W (max) each Ethernet bandwidth: 100Mbps

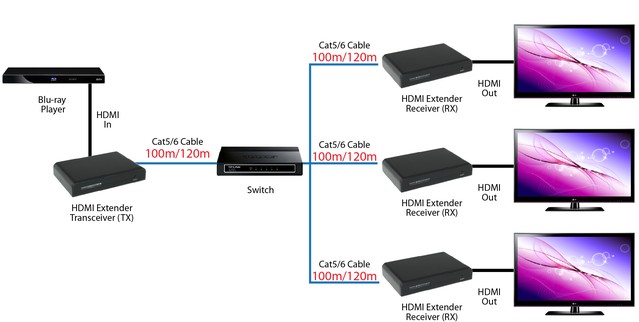

	Diagram 1: General Connection Diagram 2: Split Connection Diagram 3: Daisy Chain Connection

HDMI Extender Over Fiber Cable with Built-in IR (Up to 6000ft at 1080p)
	For long runs, nothing beats the performance of running fiber optic cables. Typically, extending your Blu-Ray player, DVD player, or any other HDMI device is used via Cat5e or Cat6 cables. With HDBaseT technology, runs can reach up to 300 feet in length. To run even longer lengths, the use of fiber optic cables are used. This HDMI extender allows you to run your HDMI signal up to 6000 feet in length at up to 1080p via fiber optic cables. 2 IR cables are also included to control your HDMI devices, even when they are not in direct line of sight of your television. Designed for restaurants, businesses, or events that require a longer run for your HDMI devices.
	Features Extends HDMI and IR over a Single Mode SC fiber cable 1080p at up to 6000ft Resolution -480i/480p -720p -1080i -1080p Includes sender unit, receiver, 2 x AC adapters, 2 x IR cables Compatible with Single Mode Simplex SC fiber cables, 1310nm Supports all HDMI features including full HD 1080p deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTs Master Audio Power Consumption: 5W (TX; RX) Power supply: 5V 2A
	General Connection

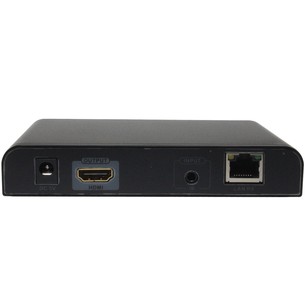

HDMI Extender Over Cat5 / Cat6 Cable with Built-in IR (Receiver Only)
	This product is for one receiver to go with HDMI-CAT6-120IR. Using multiple receivers allows you to display your source on multiple monitors and extend your length an extra 100m.
	Features HDMI receiver to split out HDMI signal to multiple LCDs. 1080p at up to 200m using Cat5e networking cables. Split signal over multiple receivers when sender and receivers are on same router 5VDC power adapters included Resolution -480i/480p -720p -1080i -1080p Includes 1 x receiver, 1 x AC adapter, and 1 x IR Emitter Compliant to HDCP Supports all HDMI features including full HD 1080p deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTs Master Audio Power Consumption: 3W (max) each Ethernet bandwidth: 100Mbps This product is only compatible with HDMI-CAT6-120IR
	Product Diagram: Split Connection

HDMI KVM Extenders

HDMI KVM Extender Ethernet Cable with Built-in IR (Up to 394ft at 1080p)
	Extend your HDMI source, such as Blu-ray players, computers, and more over Cat5e / Cat6 ethernet cable at distances up to 394ft at 1080p. Additionally, built-in USB ports for a keyboard and mouse allow control of the source device remotely, providing easy control. This is useful in cases where you need to control a DVR or computer in another location in a building. With the addition of a dedicated router and multiple receivers, you are able to split the HDMI source to multiple or more displays with the added ability to control via a keyboard and mouse in multiple locations. This essentially splits the display, keyboard, and mouse, offering features similar to a KVM. How it Works This device has the capability to connect to either one keyboard and mouse or several other keyboards and mice. The transmitter side would plug into a computer or other HDMI source. The receiver side would plug into your monitor, keyboard, mouse or other devices. (For multiple keyboard and mouse setups, you will need to purchase additional receiver units. Additionally, a dedicated router is needed to split the connection.)
	Features Transmit at distances up to 394ft (120m) with a single Cat5e or Cat 6 ethernet cable Support for resolutions up to 1080p / 60Hz Built-in IR USB ports for connecting a keyboard and mouse to control source devices remotely Add in additional receivers to split the display, keyboard, and mouse Supports adaptive equalization and signal enhancement processing EDID support 8KV ESD protection
	Diagram 1: General Connection Diagram 2: Multiple Connection

Cat5e Over Coax Extender

Ethernet over Coax Adapter Kit (Extends up to 6000ft)
	Aios ethernet over coax adapter kit allows you to extend your ethernet signal up to 2km (6000 feet). Simply plug in your networking cable into the transceiver and the output will allow you to run coax up to 6000 feet. From there it would go into the receiver and then would convert back into a network cable for its output in order for you to connect to an IP camera. (Please see diagram) This type of solution can be ideal for a building or complex that has existing coax cable run. Instead of replacing all the cables in the wall for such a long run, using this adapter kit will allow for a quick solution with superior quality.
	Features Using a single coaxial cable to transmit ethernet signal Extends up to 6000ft Network delays less than 1ms Point to Point or Point to Multi-point option available In multi-point connection, the maximum speed rate is 100Mbps Meets multi mode, link mode and star mode network simultaneously Loop circuit mode: If there is a breakdown in the circuit, the system will continue to operate normally Meets standard IEEE802.3 10BASE-T and IEEE802.3 100BASE-TX Solid structure meeting MIT rack installation standards ESD protection Note: Transmission distance is related with quality of cable, use standard Cat5/5e/6 networking cable to get the best transmission results
	Product Application Product Diagram

Toslink Audio Repeaters

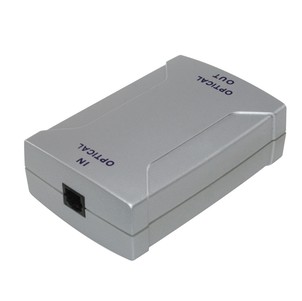

Digital Optical Audio Toslink to Toslink Repeater
	With this digital audio amplifier, you are able to maximize digital audio signals for long distance cable runs. With a maximum input cable length of 5 meters and a maximum output cable length of 20 meters, you are able to connect digital audio equipment for longer distances up to 25 meters (82.5 feet). The extension is done with no loss of sound quality. You'll be amazed at the clarity and precision of sound from Aios digital optical audio toslink to toslink repeater.
	Features Transforms toslink optical digital audio signal to a Toslink/Toslink device Allows conversion between the most common digital audio interfaces and formats Connects any device with an optical digital output to one with a Toslink/Toslink device input AC/DC adapter is required and included

Composite / Component Extenders with IR

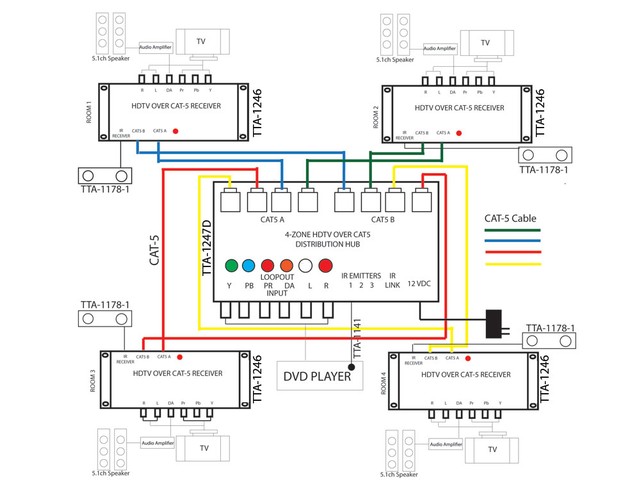

HDTV Component RCA and Digital Audio Cat5 Distribution Box, 4 Zones
	HDTV & IR Cat5 Balun Distribution Box transmits audio/video signals through Cat5e cables to the receiving balun. These balun boxes are great for offices and home use because they eliminate the need for long component video cables, digital audio cables, and composite audio cables. In addition, the use of our baluns simplifies the transmission of information by reducing the number of cables that needs to travel long distances. The use of these baluns will also reduce cost to the customer for the very same reason. An extra feature of this particular balun is the IR component. With the use of the IR, you can operate up to two devices for each IR emitter port at distances beyond the normal range of a remote control. When the command is issued, the transmitted audio/video data is displayed onto a monitor that is connected to the receiving balun, and all of this is accomplished with the same remote control. Further more, the central distribution hub has the capacity to transmit audio/video signals to 4 separate receiver units, which in turns will be displayed to the desired monitor. Once these balun boxes are set up, the convenience of using our baluns will be very apparent.
	Features Component video, RCA stereo, and RCA Digital audio over Cat5 networking cable Four zone distribution ability & loop out function Three emitters output & IR link connections Convenient IR confirmation LED Supports 480p, 720p, 1080i, 1080p resolutions Sends component video, digital audio, stereo audio, IR signals, and power over two Cat5 cables Specifications Distance: up to 400 feet (120M) Power Adapter: 12VDC 1.2A Dimension: 195mm L x 87mm W x 27 mm H
	Example Diagram

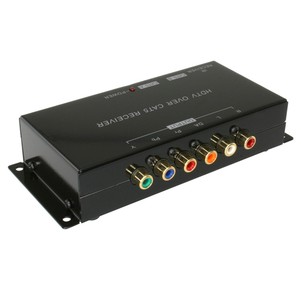

HDTV Cat5 Receiver with IR
	HDTV & IR Cat-5 Balun Receiver Box receives audio/video signals through Cat5e cables from the transmitting balun. These balun boxes are great for offices and home use because they eliminate the need for long Component video cables, digital audio cables, and composite audio cables. In addition, the use of our baluns simplifies the transmission of information by reducing the number of cables that needs to travel long distances. The use of these baluns will also reduce cost to the customer for the very same reason. An extra feature of this particular balun is the IR component. With the use of the IR, you can operate up to two devices for each IR emitter port at distances beyond the normal range of a remote control. When the command is issued, the transmitted audio/video data is displayed onto a monitor that is connected to the receiving balun, and all of this is accomplished with the same remote control. Further more, the central distribution hub has the capacity to transmit audio/video signals to 4 separate receiver units, which in turns will be displayed to the desired monitor. Once these balun boxes are set up, the convenience of using our baluns will be very apparent.
	Specifications A/V distance: 400 feet (120 meter) IR: 3.5mm mini plug Video: component Audio: digital audio Connection: RJ-45 Loop-out function Switching power supply: 12v, 1.2 amp
	Example Diagram
