Passive 3 Microphone Mixer with Aux Input, connect to TTA-1343 for Speakers

Aios Passive 3 Microphone Mixer with Aux Input allows you to connect 3 microphones and one aux unit easily into speakers. The volume on the Aux device along with each microphone can be adjusted individually for a preferred custom balance of sound. This is a passive unit and does not require power to be used.

Features

• 4 Independent volume control


• 3 x 6.3mm Input


• 2 x RCA AUX Jack


• Passive unit - No power required


• Plug and Play


• Easy to use

Example Diagram

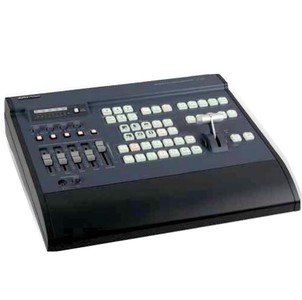

Video Mixer, 3 HD-SDI, 2 DVI-D Video Input, 2 HD-SDI Video Output, XLR Input and Output

This HD-SDI switcher is ideal for live production venues that use up 5 inputs. By combining 1 or 2 DVI-D sources and 3 or 4 HD-SDI sources, any user can make a professional looking video production. HD-SDI inputs can input from professional HD cameras natively, and consumer HDMI camcorders if an adapter is used (not included).

Features

• 8 channel switcher with audio mixer and TBC


• Frame syncs and TBC for each active source


• Multi-display output: preview, program, PiP, digital clock


• Store and recall 14 different logos


• 5 user-defined memory settings and title overlay


• Selectable mulit-view output up to 4


• Audio mixer


• Supports dissolves, cuts, wipes, splits, PiP, black, color processing, freeze image, luminance key, etc


• Video input: 3x HD-SDI & 2x DVI-D OR 4x HD-SDI & 1x DVI-D


• Audio input: 4x XLR


• Control input: RS232


• Video output:


-2x HD-SDI
-1x HD component (YUV)
-1x DVI-D (PVW)

• Audio output: 2x XLR stereo


• Tally: 1x (PGM & PVW)

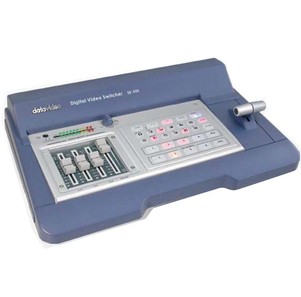

Video Mixer, 4 Composite and S-Video Video Input, Composite Video Output, RCA Audio Inout and Output

The SE-500 is a compact and portable 4 channel standard definition A/V switcher with audio mixer and TBC. Input video from S-Video or composite, and output to composite, S-Video, or component video.

Features

• 4 channel AV switcher with TBC


• Frame syncs and TBC for each active source


• Audio mixer w/2 microphone channels, 1 auxiliary


• Previews are PiP or quadview


• Supports dissolves, cuts, wipes, splits, PiP, color processing


• Selectable multiview output. Typical configuration: use one monitor for source monitoring and one for program output.


• Video input: 4x composite or 4x S-Video


• Audio input: 2x 1/4" Mic, 1x RCA stereo


• Control input: RD232, MIDI


• Video output:


-1x composite (PGM)
-1x composite (quad PVW)
-1x composite; 1x S-Video or 1x YUV (component)

• Audio output: 1x RCA stereo


• Control: 1x Tally (PGM & PVW)

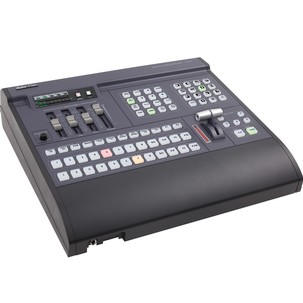

Video Mixer, 6 Composite and DVI Video Input, DVI, Composite Video Output, XLR, RCA Audio Input and Output

This 8 channel SD video switcher has a built-in dual channel audio mixer and TBC. This switcher can be used for large lecture conferences, live broadcasts, and studio productions. The SE-600 enables you to switch seamlessly between video and audio sources and blend high quality content for professional results.

Features

• 8 channel AV switcher with audio mixer and TBC


• Frame syncs and TBC for each active source


• Audio mixer w/2 microphone channels, 1 auxiliary


• Dual PiP


• Supports dissolves, cuts, wipes, splits, PiP, color processing


• Selectable multiview output up to 4


• Video input: 6x composite; 1x DVI-D, 1x DVI-I


• Audio input: 2x XLR, 1x RCA stereo


• Control input: RS232


• Video output:


-2x composite (PGM)
-1x S-Video or 1x YUV (component) (PGM)
-2x composite (AUX1)
-2x composite (AUX2)
-2x DVI-D (PVW)

• Audio output: RCA stereo, 2x XLR


• Tally: 2x D-SUB, 4 channels each
