2 Port VGA Switch Box with Audio Ports

VGA switch box with audio allows two computers to share a monitor through a VGA with 3.5mm audio. The VGA switch transmits your viewing signal clearly and efficiently by using the simple press down buttons to choose which computer to display on the monitor.

Features

• 2 computers share a monitor through a VGA connection with 3.5mm audio


• Button switch


• Auto-detects DDC information to get the best resolution for any monitor


• No external power required


• Suitable for most widescreen monitors


• Supports resolutions up to 1600x1280 pixels

4 Port VGA Switch Box with Audio Ports

VGA switch box with audio allows four computers to share a monitor through a VGA with 3.5mm audio. The VGA switch transmits your viewing signal clearly and efficiently by using the simple press down buttons to choose which computer to display on the monitor.

Features

• 4 computers share a monitor through a VGA connection with 3.5mm audio


• Button switch


• Auto-detects DDC information to get the best resolution for any monitor


• No external power required


• Suitable for most widescreen monitors


• Supports resolutions up to 1600x1280 pixels

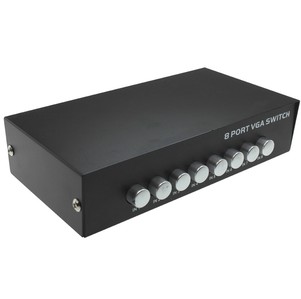

8 Way VGA Switch Box

VGA Switch Box allows eight computers to share a monitor through a VGA. The VGA switch transmits your viewing signal clearly and efficiently by using the simple press down buttons to choose which computer to display on the monitor.

Features

• 8 Computers share a monitor through a VGA connection


• Button switch


• Auto-detects DDC information to get the best resolution for any monitor


• No external power required


• Suitable for most widescreen monitors


• Resolution: up to 1600x1280px

SDI 1 Input and 2 Output SD / HD / 3G-SDI Splitter and Repeater

This 2 port SDI splitter allows a single SDI, HD-SDI or 3G-SDI video source to be distributed to as many as four SDI/HD-SDI/3G-SDI devices simultaneously without signal loss. Crisp, highly defined visuals are generated in NTSC or PAL formats supporting Standard and High Definition resolutions up to 1080p Full HD at 60Hz.

Features

• SDI splitter (SD-SDI, HD-SDI, 3G-SDI)


• One input to 2 output


• High Resolution Digital Multiplexer (HD-SDI)


• Supported resolutions:


-480i
-720p 50/60 fps
-1080i 50/60 fps
-1080p 24/25/30/50/60 fps

• 1920 x 1080, 1280 x 1024 , 1280 x 720, 1024 x 768


• SDI Repeater - Equalized and re-clocked transmission and supports signal input and output distances up to 400 meters @ SD-SDI, 200 meters @ HD-SDI and 100meters @ 3G-SDI signal.


• Wide Voltage - supports DC5V-30V Voltage input (5w lowest power) and is more reliable for projects and setups


• LED indicator lighting


• Automatically detects correct SDI signal to output

Example Diagram

1 to 4 SD/HD/3G-SDI Splitter and Amplifier

This 4 port SDI splitter allows a single SDI, HD-SDI or 3G-SDI video source to be distributed to as many as four Hi-Def SDI/HD-SDI/3G-SDI devices simultaneously without signal loss. Crisp, highly defined visuals are generated in NTSC or PAL formats supporting Standard and High Definition resolutions up to 1080p Full HD at 60Hz.

Features

• One input (BNC) to 4 output (BNC)


• High Resolution Digital Multiplexer (HD-SDI / HDMI Input)


• Multi-Video Output


• 1920 x 1080, 1280 x 1024 , 1280 x 720, 1024 x 768


• Simultaneous Output (HDMI, D-sub, HD-SDI)


• Multi Language Support


• Auto system recovery


• Control screen mode via LAN, RS-485, RS-232C

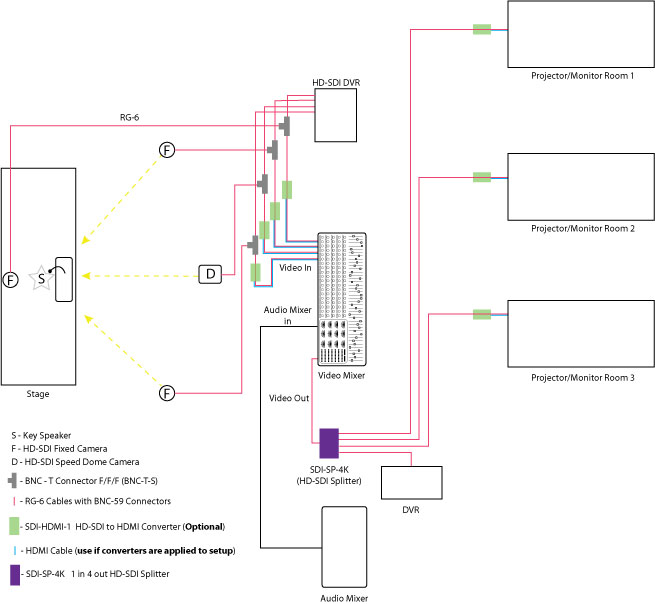

Example Diagram

SDI 1 Input and 4 Output SD / HD / 3G-SDI Splitter and Repeater

This 4 port SDI splitter allows a single SDI, HD-SDI or 3G-SDI video source to be distributed to as many as four SDI/HD-SDI/3G-SDI devices simultaneously without signal loss. Crisp, highly defined visuals are generated in NTSC or PAL formats supporting Standard and High Definition resolutions up to 1080p Full HD at 60Hz.

Features

• SDI splitter (SD-SDI, HD-SDI, 3G-SDI)


• One input to 4 output


• High Resolution Digital Multiplexer (HD-SDI)


• Supported resolutions:


-480i
-720p 50/60 fps
-1080i 50/60 fps
-1080p 24/25/30/50/60 fps

• 1920 x 1080, 1280 x 1024 , 1280 x 720, 1024 x 768


• SDI Repeater - Equalized and re-clocked transmission and supports signal input and output distances up to 400 meters @ SD-SDI, 200 meters @ HD-SDI and 100meters @ 3G-SDI signal.


• Wide Voltage - supports DC5V-30V Voltage input (5w lowest power) and is more reliable for projects and setups


• LED indicator lighting


• Automatically detects correct SDI signal to output

Example Diagram

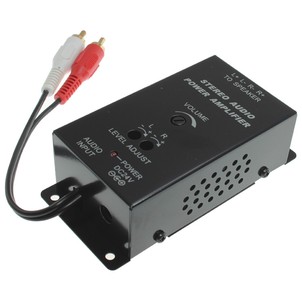

1 Audio Source Power Amplifier with Built-in DAC, 10W

1 Audio Source Power Amplifier with Built-in DAC is a powerful amplifier with 10W of output in stereo mode. The device allows you to plug in an audio source to allow you to connect to speakers or higher end equipment such as in-wall speakers without having to connect to a home theater system or amplifier. The input has stereo left and right to plug in your devices for iPods, mp3 players, etc. (for iPods and many device players, you will need a 3.5mm converter) This device allows you to connect to speakers in a convenient way, between which source you want to use while amplifying the sound. This device also features volume control.

Features

• Compact size


• Level and L/R Balance


• Wall mountable


• Terminals uses 24 to 12 gauge wires


• High output power (Pout): 50W (Max) (RL = 8 ohm)


• Speaker impedance: 4 or 8 ohm


• Total Harmonic Distortion (THD) = 0.04% (@Pout = 2W)


• Ripple rejection ratio (R.R.) = -50dB


• Output noise voltage (Vno) = 0.14mVrms (Typ.)


• Voltage gain: 30dB


• Input resistance: 47k ohm min.


• Power Requirements: 24VDC, 1A

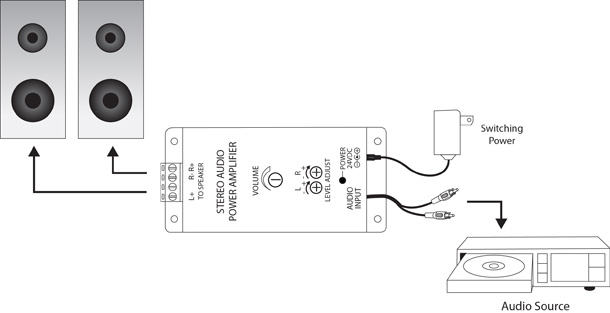

Example Diagram

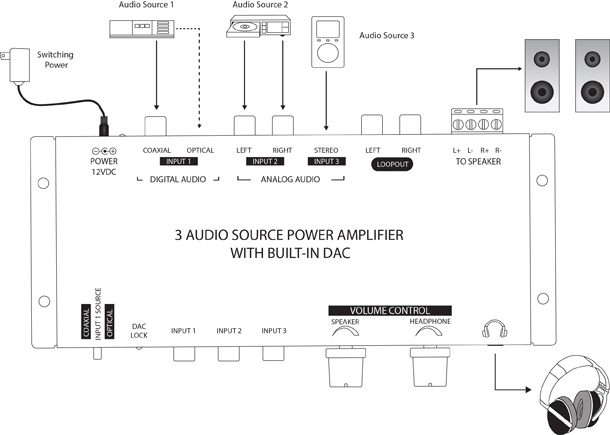

3 Audio Source Power Amplifier with Built-in DAC, 15W Per Channel

3 audio source power amplifier with built-in DAC is a powerful amplifier with 15W of output in stereo mode. The device allows you to plug in up to 3 different audio sources with 3 different connections. Input 1 has the option of a coaxial or optical source. Input 2 has stereo left and right. Input 3 features a 3.5mm audio jack for iPods, mp3 players, etc. This device allows you to easily switch between which source you want to use while amplifying the sound. This device also features volume control switches for your convenience.

Features

• Speaker Amplifier


-Amplifier Type: Stereo Class-D
-Output Power: 15W (RMS) per channel
-THD+N: 0.06% (@RL = 8 ohm, F = 1 kHz)
-Minimum Load Resistance: 16 ohm
-Speaker Protection Circuit

• Headphone Amplifier


-Output Power: 105mW (RMS) per channel
-THD+N: 0.05% (@RL = 16 ohm, F = 1kHz)
-Minimum Load Resistance: 16 ohm

• Digital to Analog Converter (DAC)


-Digital Input Type: Coaxial and Optical
-Support Digital Audio Format: LPCM
-Input Impedance: 75 ohm
-Frequency Response: 32 - 192KHz sample rate

Example Diagram

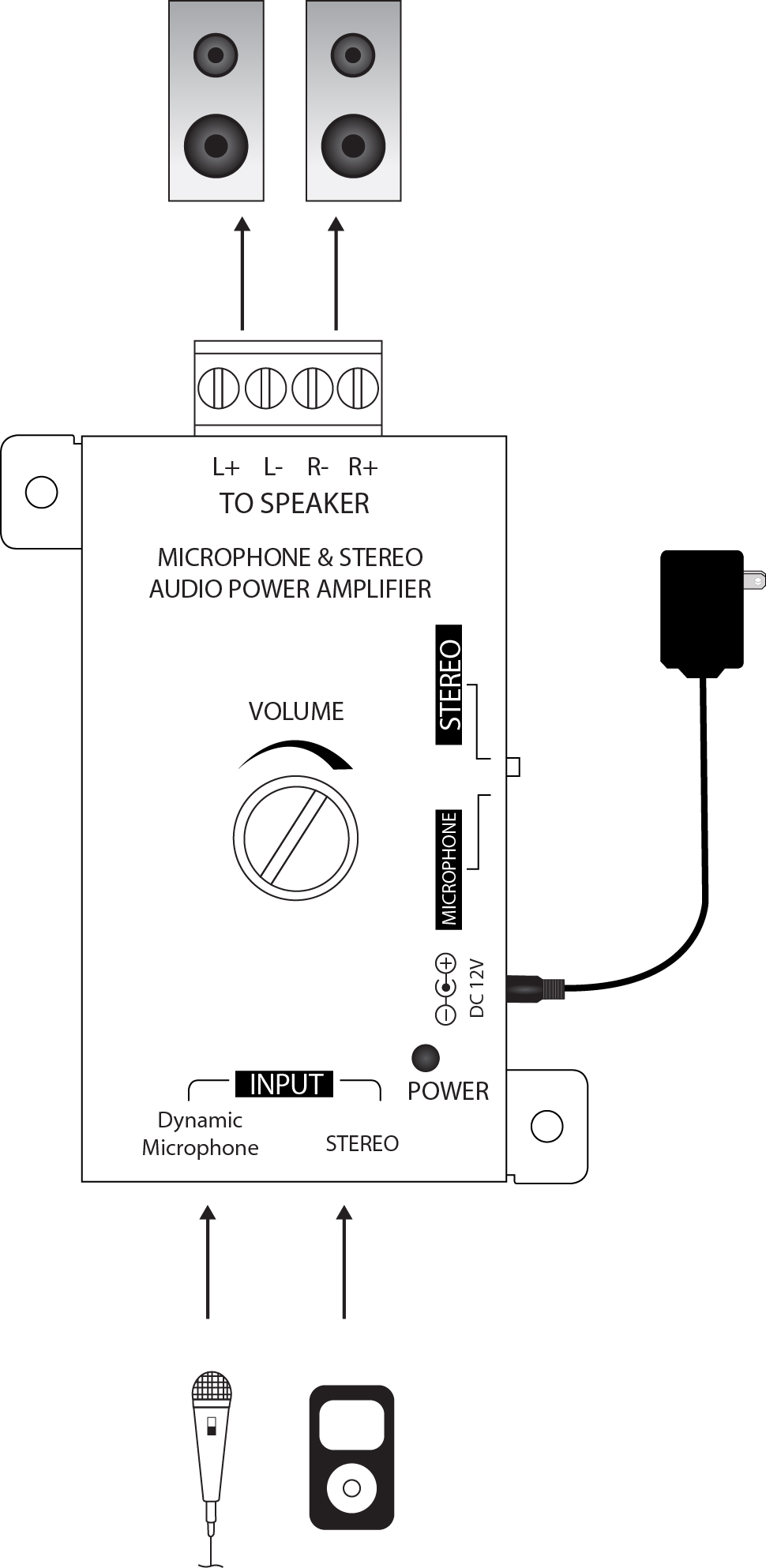

1/4" Microphone or 3.5mm Stereo Audio Power Amplifier, Stereo Class-D / 15W (rms) Output per Channel

This powerful audio amplifier outputs 15W of output per channel in stereo mode and allows you to plug in an audio source to allow you to connect to speakers or higher end equipment such as in-wall speakers. The input supports audio devices that have 1/4" or 3.5mm connections. This audio amplifier allows you to connect to speakers in a convenient way, between which source you want to use while amplifying the sound. Additionally, volume control is supported as well.

Features

• Compact size


• 1 audio source input: 1/4" TRS Stereo or 3.5mm TRS Stereo


• 1 speaker output


• Large detachable terminal blocks included for quick and easy installation in a structured wiring cabinet


• Screw terminals for wires 24 to 12 gauge


• Stereo Class-D / 15W (rms) output per channel


• Includes speaker volume control


• Includes speaker protection circuit


Speaker Amplifier

• Amplifier Type: Stereo Class-D


• Output Power: 15W (RMS) per channel (@RL-4 ohm)


• THD+N: 0.06% (@RL = 8 ohm, F = 1 kHz)


• Includes speaker protection circuit

Example Diagram

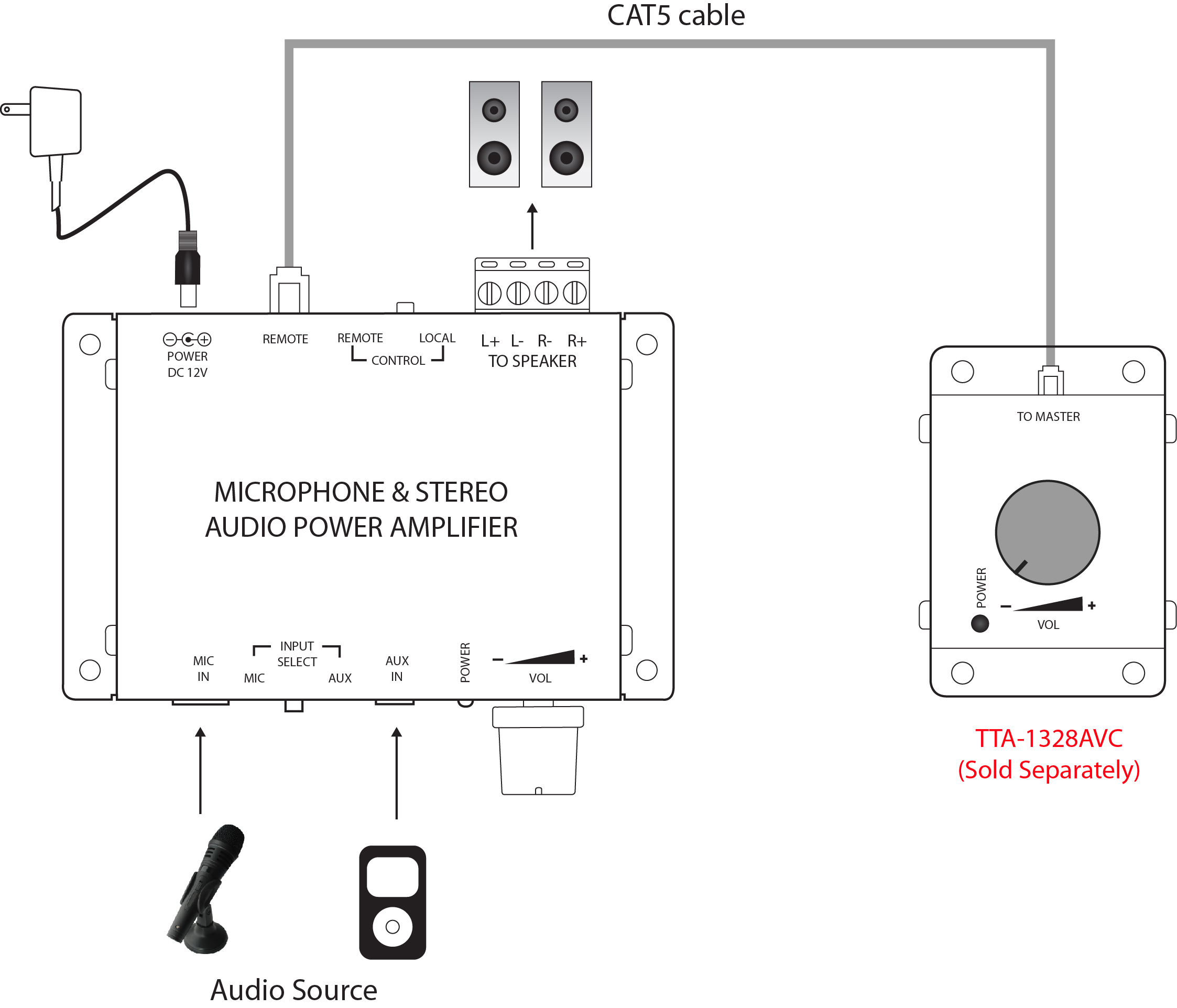

Microphone and Stereo Power Amplifier (TTA-1328AVC is Required for Volume Control)

Microphone and Stereo Power Amplifier is a device allows you to plug in an audio source or a microphone and their signals will be broadcasting through the speakers. The speakers easily connect to the device through terminal block connections. This allows you to connect higher end equipment without having to connect to a big system (PA) or big sized amplifier.

Features

• Supports Volume Remote Control


• Microphone Pre-amplifier


• Inputs Dynamic microphone or stereo line level


• Large detachable terminal blocks included for quick and easy installation in a structured wiring cabinet


• Screw terminals for wires 24 to 12 gauge


• Stereo Class-D / 15W (rms) output per channel


• Includes Microphone and Stereo Power Amplifier, 12VDC (2A) Power adapter and 4x screws

Example Diagram

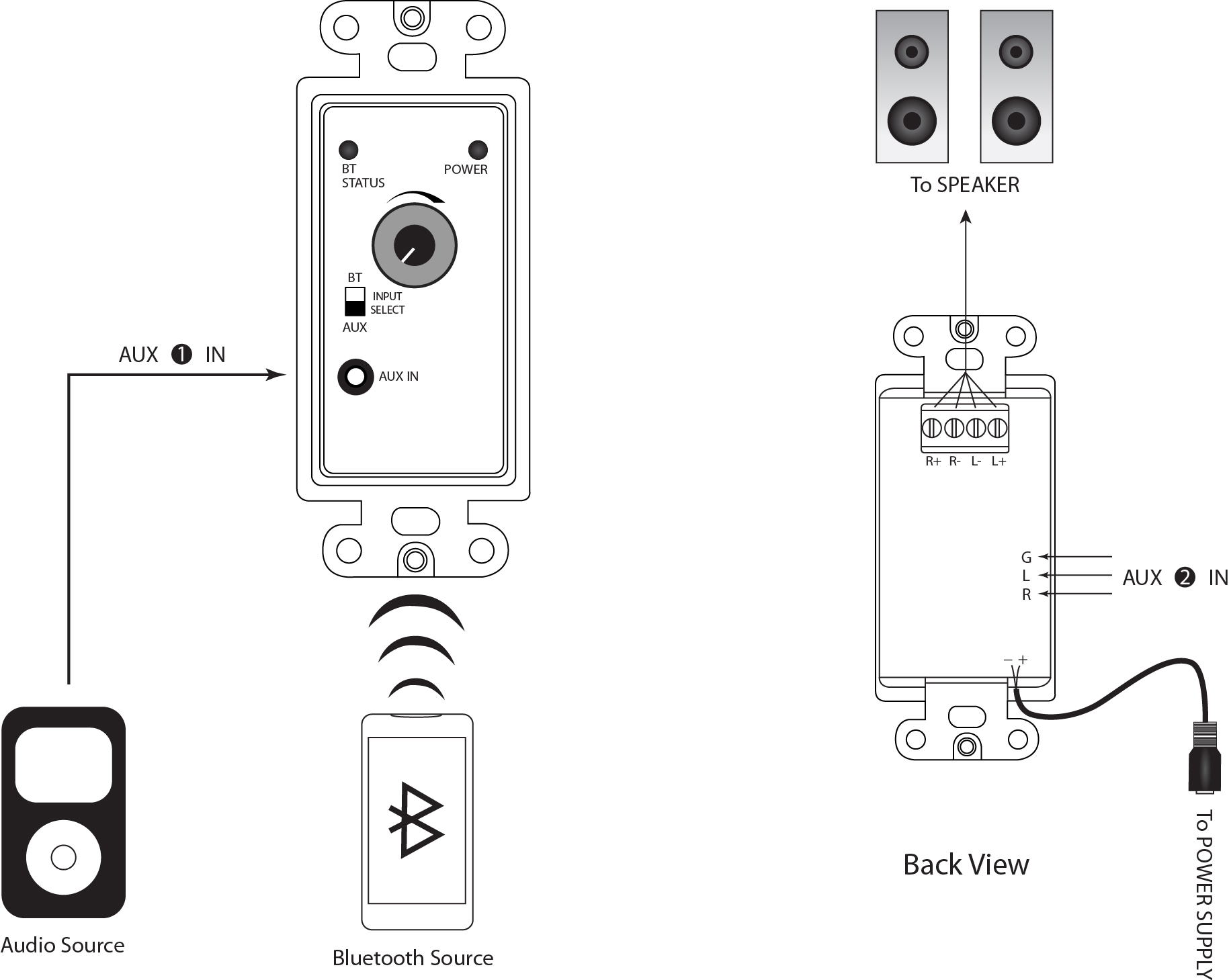

Wall Plate Stereo Audio Power Amplifier Built-in Bluetooth Receiver and Volume Control

Wall Plate Stereo Audio Power Amplifier with Built-in Bluetooth Receiver is a quick and easy way to get your music playing to most local speakers. The back of the wall plate features a terminal block connection to connect speakers, along with a connection for a power supply and wires to connect the Auxiliary jack. On the front you can choose to connect your audio source through Bluetooth or a straight plug in through the Auxiliary plug 3.5mm audio jack. Once you have connected your audio, the front of the wall plate features a volume control knob. This works great for controlling volume for in wall speakers or ceiling speakers from a convenient location.

Features

• Can play off of AUX device or bluetooth device


• Volume control


• Bluetooth distance: 30ft (10m)


• Bluetooth: 3.0 EDR compliant


• Output Power: 15W (rms) per channel


• Minimum Load Resistance: 4ohm

Example Diagram

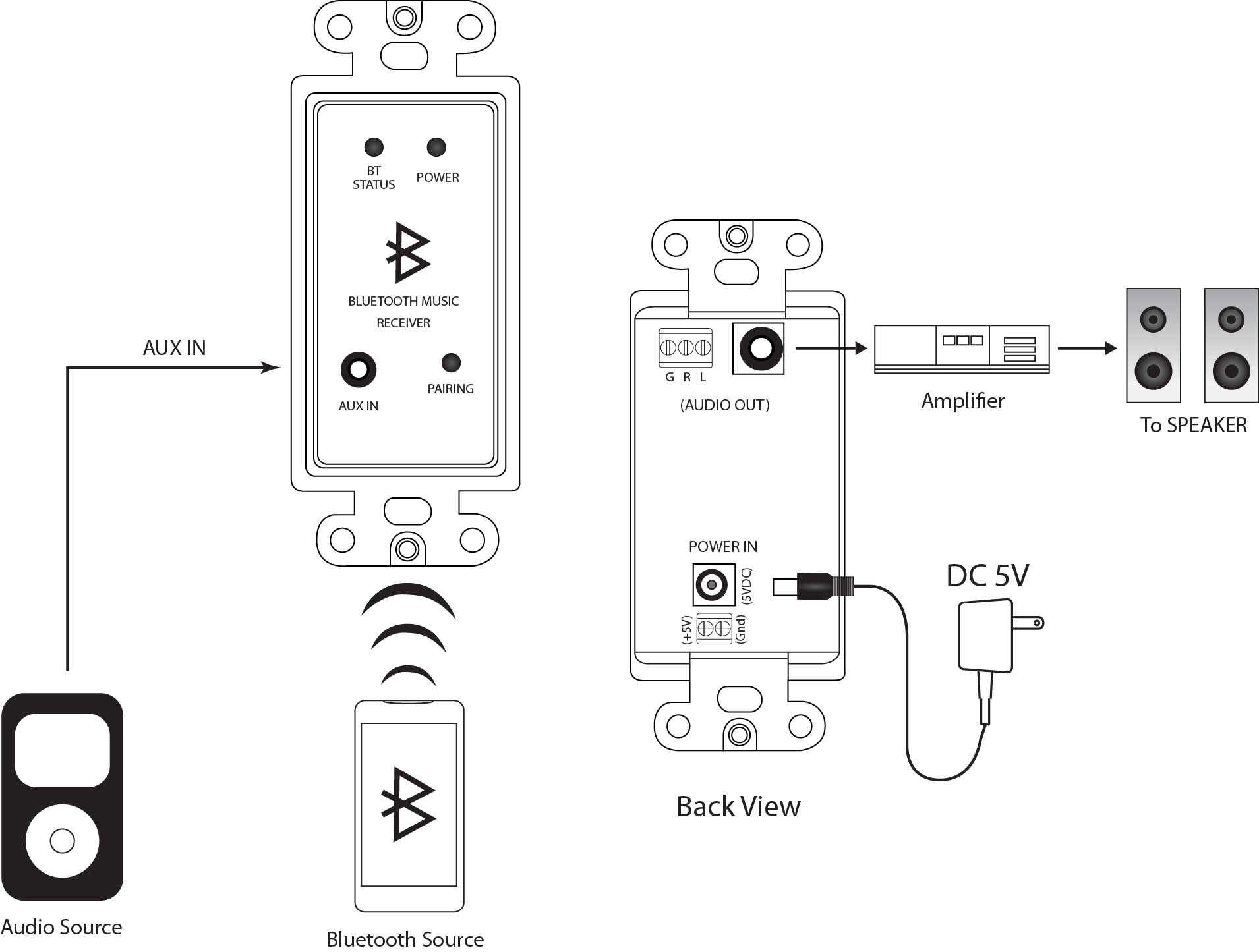

In-Wall Stereo Audio and Bluetooth Receiver Wall Plate

Bluetooth Audio Wall plate allows you to mount onto a single gang opening and conveniently connect your audio devices using Bluetooth. The front plate also features a convenient 3.5mm auxiliary port along with Bluetooth and Power indicators.

Features

• Can play off of AUX device or Bluetooth device


• Bluetooth distance: 30ft (10m)


• Bluetooth: 3.0 EDR compliant


• 3.5mm Stereo Audio or 3-Pin screw terminal output to any speaker


• Power input: Power jack or 2-Pin screw terminal (5V and GND)


• Power: 5VDC/1A


• FCC Compliant

Example Diagram

1 in 4 Out VGA and Audio Splitter with Booster up to 328ft

1 in 4 Out VGA and Audio Splitter with Booster allows you to split and display VGA video from a single VGA input to display to 4 VGA output displays. Outputs 1 and 2 allow you to extend 197ft, outputs 3 and 4 feature a booster that extends your signal up to 328ft. The audio is extended through a 3.5mm stereo plug which has a slot for the input, and one for each output (see diagram below for more details).

Features

• 4 Audio/Video distribution


• Adjustable Gain and Equalization control


• Input: 1 x VGA & 1 x 3.5mm Stereo Jack


• Output: 4 x VGA & 4 x 3.5mm Stereo Jack


• Boosts signal up to 100M (328ft)


• Housing: Metal


• Power Supply: DC 12V, 500mA

Example Diagram

VGA Switch Splitter 8 Input, 4 Output Displays Synchronization, 350MHz, Resolution: 1920*1440, 19 inch Rack Mount

VGA cards have been a long-time standard for most computer video cards, monitors, screens, and high-definition televisions. VGA's ubiquity makes VGA accessories, such as splitters, an absolute necessity for any computer setup/information system. To be more efficient with the given equipment, Aios provides VGA splitters that split the high resolution visual data up to 4 separate monitors. These splitters are manufactured to optimize performance. The labeled ports clearly inform the customer which sockets belong to which monitor. By using our highly capable splitters, you will experience unparallel transfer speed and integrity of visual data, as well as realistic multimedia effects over multiple viewing sources.

Features

• 8 Input, 4 Output


• 350MHz


• Resolution: 1920 x 1440


• 19" rack mount

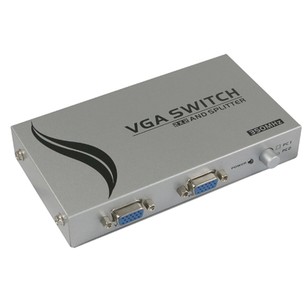

VGA Switch and Splitter 2 Input 2 Output, 350MHz (Resolution: 1920x1440)

VGA switch with 2 inputs and 2 outputs allows you to view two computers on two separate monitors or to view one computer and duplicate the image onto both monitors.

Features

• 2 Input, 2 Output


• 350MHz


• Resolution: 1920 x 1440


• Enclosure: Metal

VGA Switch Splitter 4 Input, 4 Output Displays Synchronization, 350MHz, Resolution: 1920*1440, 232 Interface control and Remote Control

VGA splitter helps to display four source to four different monitors. The device helps to display to a wider audience. Perhaps you have an audience in two separate rooms, you can use this splitter to display your presentation in both rooms simultaneously.

Features

• 4 Input, 4 Output


• 350MHz


• Resolution: 1920 x 1440


• RS 232 interface control and remote control


• Push button for selecting the input


• Works with VGA cables up to 100ft

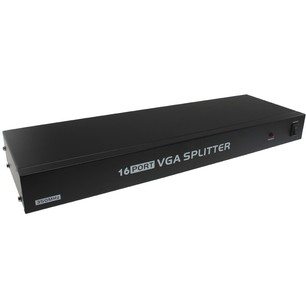

VGA Splitter 1 Input to 16 Output, Bandwidth: 350MHz, Resolution: 1920*1440 19 inch Rack Mount Type

VGA cards have been a long-time standard for most computer video cards, monitors, screens, and high-definition televisions. VGA's ubiquity makes VGA accessories, such as splitters, an absolute necessity for any computer setup/information system. To be more efficient with the given equipment, Aios provides VGA splitters that split the high resolution visual data up to 16 separate monitors. These splitters are manufactured to optimize performance. The labeled ports clearly inform the customer which sockets belong to which monitor. By using our highly capable splitters, you will experience unparallel transfer speed and integrity of visual data, as well as realistic multimedia effects over multiple viewing sources.

Features

• Input: 1 VGA Female


• Output: 16 VGA Female


• Bandwidth: 350MHz


• Input Level: 0.5-1Vp-p


• Input Resistance: 75 ohm


• HV Channel: Input Level 0.7-5Vp-p


• Transmission Distance: 45m


• Resolution: 1920 x 1440


• Power: DC9V 50/60Hz 5W


• Enclosure: Metal

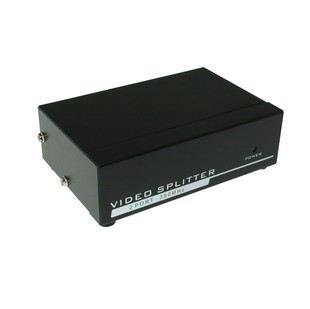

VGA Splitter 1 Input to 2 Output, Bandwidth: 350MHz, Resolution: 1920x1440

VGA splitter helps to display one source to two different monitors. The device helps to display to a wider audience. Perhaps you have an audience in two separate rooms, you can use this splitter to display your presentation in both rooms simultaneously.

Features

• Splits one source to two display monitors


• Supports 350MHz Video Bandwidth


• Transmits signal up to 213 ft


• Resolution up to 1920 x 1440


• Power Input: DC9V, 500mA

VGA Splitter 1 Input to 4 Output, Bandwidth: 350MHz, Resolution: 1920x1440

VGA Splitter 1 in and 4 out helps to display one source to four different monitors. This helps to display to a wider audience. Perhaps you have an audience in four separate rooms, you can use this Splitter to display your presentation in all four rooms simultaneously.

Features

• Splits one source to four display monitors.


• Supports 350MHz Video Bandwidth


• Transmits signal up to 213 ft.


• Resolution up to 1920 x 1440


• Power Input: DC9V, 500mA

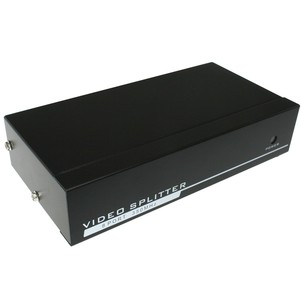

VGA Splitter 1 Input to 8 Output, Bandwidth: 350MHz, Resolution: 1920x1440

VGA Splitter 1 in and 8 out helps to display one source to four different monitors. This helps to display to a wider audience. Perhaps you have an audience in eight separate rooms, you can use this Splitter to display your presentation in all eight rooms simultaneously.

Features

• Splits one source to eight display monitors.


• Supports 350MHz Video Bandwidth


• Transmits signal up to 213 ft.


• Resolution up to 1920 x 1440


• Power Input: DC9V, 500mA

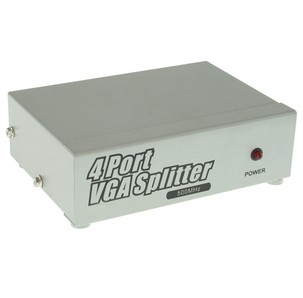

VGA Splitter 1 Input to 4 Output, Bandwidth: 500MHz, Resolution: 2048x1536

The VS-5004 PIMFG VGA Splitter is the perfect solution to drive 4 VGA displays with just one box. The device allows you to plug in any input device, such as a computer, and output it on up to 4 different VGA displays, like a computer monitor, LCD/Plasma display, or even a projector. The VS-5004 PIMFG VGA Splitter has a high 500MHz bandwidth to support high quality video with resolutions up to 2048 x 1536. Daisy chaining is also available for those who require multiple splitters to be used.

Features

• Supports High 500MHz Video Bandwidth


• Distance: up to 213 feet (65m)


• Supports Daisy Chaining


• Input: 1 x VGA (15HDF) female


• Input Level: 0.5-1Vp-p


• Input Resistance: 75 ohm


• Output: 4 x VGA (15HDF) Female


• Resolution: 2048 x 1536 @ 60Hz


• Power Input DC9V 300mA


• Housing: Metal


What's Included

• 4 Port Video Splitter x 1


• User Manual x 1


• Power Adapter x 1

VGA Splitter 1 Input to 8 Output, 300MHz

VGA cards have been a long-time standard for most computer video cards, monitors, screens, and high-definition televisions. VGA's ubiquity makes VGA accessories, such as splitters, an absolute necessity for any computer setup/information system. To be more efficient with the given equipment, Aios provides VGA splitters that split the high resolution visual data up to 8 separate monitors. These splitters are manufactured to optimize performance. The labeled ports clearly inform the customer which sockets belong to which monitor. By using our highly capable splitters, you will experience unparallel transfer speed and integrity of visual data, as well as realistic multimedia effects over multiple viewing sources.

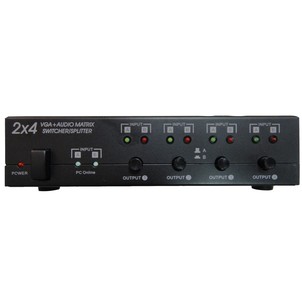

2 input to 4 Output VGA and 3.5mm Stereo Matrix Switch / Splitter

2 input to 4 Output VGA and 3.5mm Stereo Matrix Switch / Splitter allows you to have two different sources for the two inputs (A and B). The four outputs allows you to choose between either input A or B to be displayed with audio. This device makes it easy to make your selection with the front panel select buttons. This can be used with varies different environments such as in the work place, corporate boardrooms, school classrooms, restaurants, home theaters, and video conference rooms.

Features

• Allows 2 VGA source devices to 4 VGA displays (VGA and 3.5mm Stereo)


• Front panel selection buttons (Push type)


• Each output can be set to A or B input


• Blue LED indicator for PC online


• Audio and Video can be cascaded


• Power: DC 12V, 500mA

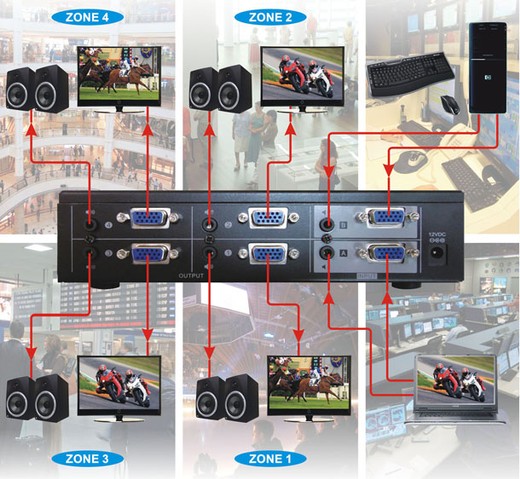

Example Diagram

3x1 HDMI Switch with Audio Extractor Toslink S/PDIF and L/R Composite Audio, 3D, 4K Support

Add up to 3 additional HDMI ports to your HDTV with our 3x1 HDMI switch with audio extractor. The switch supports resolutions up to 4K with 3D support and allows the extraction of audio via Toslink S/PDIF and L/R composite audio. The switch is typically used in applications where you need extra HDMI ports, but need the ability to output audio to a sound bar or audio receiver that only has Toslink S/PDIF or L/R composite audio. Support for Dolby digital (AC3) / DTS / LPCM / 2/5.1CH is also included, among other audio modes. Built with a metal enclosure for installation in various applications, the switch also includes a remote control to switch between sources easily.

Audio Extraction

The HDMI switch features an audio extractor, adding the ability to output audio to a sound bar or audio receiver that only has Toslink S/PDIF or L/R composite audio. Support for Dolby digital (AC3) / DTS / LPCM / 2/5.1CH is also included, among other audio modes.

Features

• Supports resolutions up to 4K x 2K


• 3D support


• Supports 30 bit, 36 bit deep color


• Supports Toslink S/PDIF and L/R composite audio audio extraction


• Supports 3 modes of EDID management for audio formats


• Can switch between built-in EDID (2CH / 5.1CH) and external EDID (TV)


• PAL / NTSC automatic video format


• Input: 1 x MHL / HDMI, 2 x HDMI


• Output: 1 x HDMI, 1 x Toslink (Optical), 1 x Audio (L&R)


• Supports Audio Return Channel (ARC), which uses a single HDMI connection to send audio from a TV to the sound bar or AV receiver


• HD audio format: LPCM, Dolby-AC3, DTS7.1 Dolby True HD/DTS-HD master audio


• Easily switch between devices either manually or with the included IR remote controller


• Metal enclosure for durability


• Plug and Play


• DC 5V/1


NOTE: For best results, please make sure to limit the HDMI input to a maximum of 33 feet. HDMI output is limited to a maximum of 50 feet. Additionally, we recommend the use of 26AWG HDMI cables.

Add up to 3 additional HDMI ports to a HDMI display. The 3x1 HDMI switch expands the available HDMI ports on your HDTV, allowing you to add more devices, such as a Blu-ray player, PS4, Xbox One, and more with support for resolutions up to 4K UHD at 60Hz. IR and RS32 control allow easy controlling of HDMI sources with standard, DSD (Direct Stream Digital) and HD (HBR) audio support.

Support for 3 Sources

With support for 3 HDMI sources, you can plug in Blu-ray players, gaming consoles, and more to a HDMI enabled display. This is useful in applications where the HDMI ports are limited on the display.

4K UHD at 60Hz

The 3x1 switch supports resolutions up to 4K UHD 2160p at 60Hz, delivering high resolutions for your HD content viewing.

IR and RS232 Control

IR and RS232 control allows easy controlling of your devices. With the included IR remote, it's easy to switch between devices efficiently.

Audio Extraction

The HDMI switch features an audio extractor, adding the ability to output audio to a sound bar or audio receiver that only has Toslink S/PDIF or L/R composite audio. Support for Dolby digital (AC3) / DTS / LPCM / 2/5.1CH is also included, among other audio modes.

Features

• 3 port HDMI switch


• Includes remote control


• Supports 3D content


• Supports HDMI resolutions up to 4K UHD / 60Hz


• Supports bandwidth up to 18Gbps


• Supports IR control and RS232 control


• Supports standard audio and DSD (Direct Stream Digital) and HD (HBR) audio


• Metal enclosure


• Plug and play, easy to use


• Power supply: 5V / 1A (included)


Plug in up to 4 HDMI sources, such as a Blu-ray player, PS4, or Xbox One and either split the signal on up to 2 HD displays or switch between 2 HD displays. With support for 4K x 2K resolutions with HDCP compatibility, the 4 x 2 HDMI matrix switch is also constructed with a metal housing for durability and can be wall mounted for a clean and easy setup. It also comes with an IR receiver and remote control for easy control and manual buttons to switch between displays if necessary. Audio can either be outputted from the HDMI or through the provided analog / digital audio jack.

Features

• Supports 4 input devices and can output to up to 2 devices individually or simultaneously


• Output Resolution: 480i@60Hz, 480p@60Hz, 576i@50Hz, 567p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3D HDMI(720p@50/60Hz, 1080p@24Hz), 3840 x 2160p@24/25/30Hz


• Switches easily between multiple HDMI sources via remote control or via buttons on the unit


• Inner IR receiver to increase IR remote control signal


• Supports all HDMI features including full HD 1080p deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTs Master Audio


• Compliant to HDCP


• 3D and 4K compatible


• Durable metal enclosure


• Easy installation; plug and play


• 4K - When both input and output devices supports 4K (to reach 4K resolution, all connected HDMI cables must be shorter than 15ft)


• Additional coax digital and analog audio output for HDMI port A


What's Included

• HDMI matrix switch


• Remote control


• 5V / 3A power adapter


• R/L audio + SPDIF audio cable


• Screws (to hang on wall)


• IR extension receiver


• CR2032 battery


Example Diagram

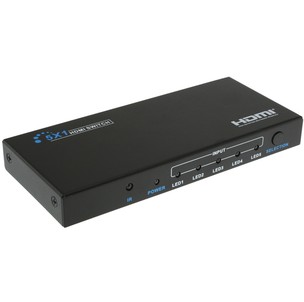

Connect multiple or more HDMI sources with a single HDMI input with Aios HDMI switch. Useful for situations where your HDTV only has one HDMI input or you need to expand to more HDMI inputs. This 5 port HDMI switch allows you to switch between 5 HDMI sources. Simply run each HDMI cable from your source device, such as a PS3, Xbox 360, or Blu-ray player to the HDMI switch and enjoy high-definition content from your home theater entertainment system. The HDMI switch supports 3D output and supports resolutions up to 1080p and includes a remote control for easy switching between HDMI devices.

Features

• 5 port HDMI switch


• Includes remote control


• HDMI Version: 1.3b, HDCP


• HDMI resolutions: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p


• UXVGA Resolution: up to 1920 x 1200


• Includes remote control
